Name: AOC 2.1 - Active Optical Cable - HDMI Armored 8K@60Hz - UHD - Silicon Jacket Cable
SKU: 247625

Overview

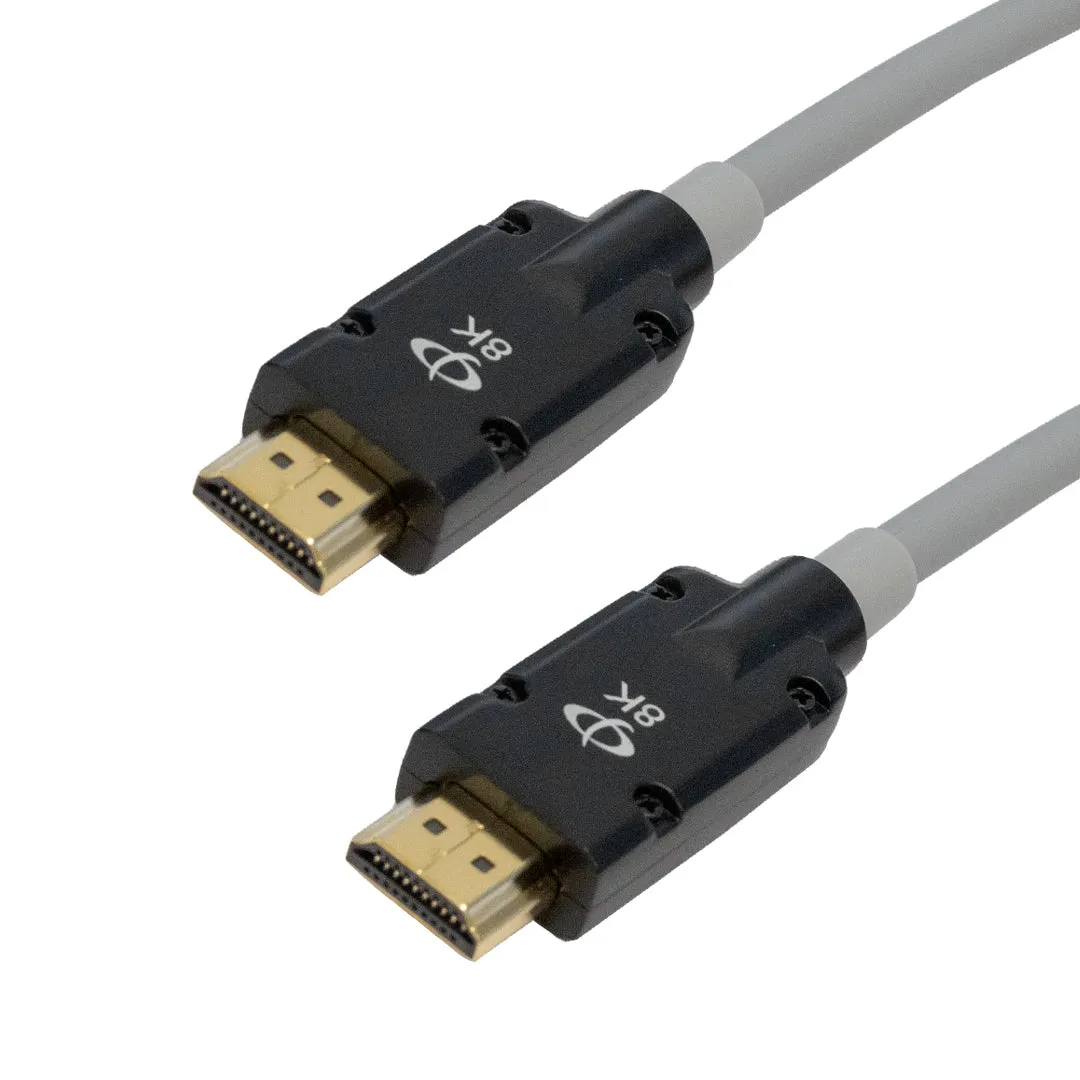

This silicon armored active optical (AOC) Ultra High-Speed HDMI® cable consists of a HDMI male connector on both ends. The cable has a built in signal booster chipset which allows it to maintain a HDMI 2.1 signal over a thin cable at longer lengths with no signal loss. It is typically used to connect a HDMI source such as Blu-Ray players and PC's to a HDTV or monitor and supports full 8K Ultra HD resolution and High Dynamic Range (HDR). The AOC cable also works with splitters, switches and other video sharing devices.

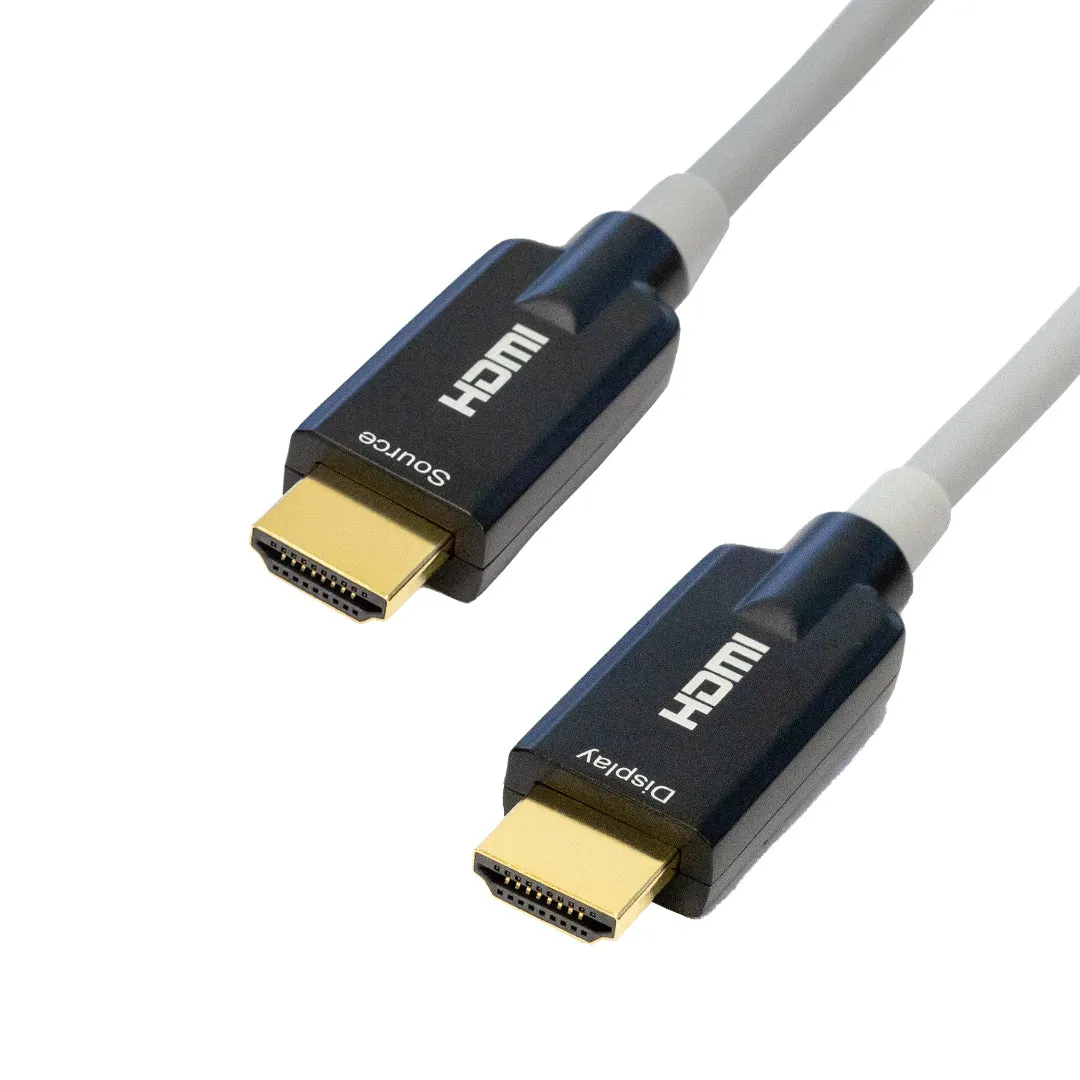

NOTE: This active optical HDMI® cable is directional. Each end of the cable is marking "Source" and "Display" to indicate the direction of the signal flow. Always test the cable to be sure that the signal flow is correct and for device compatibility before permanently installing in a wall or ceiling.

Extend HDMI Signals Over Optical Cable

These cables are armored constructed from both copper and optical fiber. They feature a built-in booster chipset ideal for maintaining 8K Ultra HD resolution and ensure a full 48Gpbs bandwidth with no signal loss over longer distances.

Optimum Performance and Easy Installation

These cables utilize AOC technology which make them more flexible and thinner than traditional long-length HDMI cables, making them easier to install. The transmission signal is transferred over fiber optic cable which eliminates EMI/RFI interference, maintaining a high level of performance even in high interference environments.

Ultra High-Speed

These Ultra High-Speed cables support 4K and 8K video, HDR, VRR, eARC and all other HDMI 2.1b features.

Applications

Digital Signage - LED signboards in streets and in stadiums - Medical Imaging Equipment - Airplane On-board Video System - Home Theater - Blue-ray, 3D video, Projector, Set-up box, DVR, Game Consoles and Computer - TV Broadcast Station - Conference Room Video Equipment - Security systems

Specifications

Physical Characteristics
Color	Grey
Connector Plating	Gold
Jacket Outer Materia	TPU(Silicone)

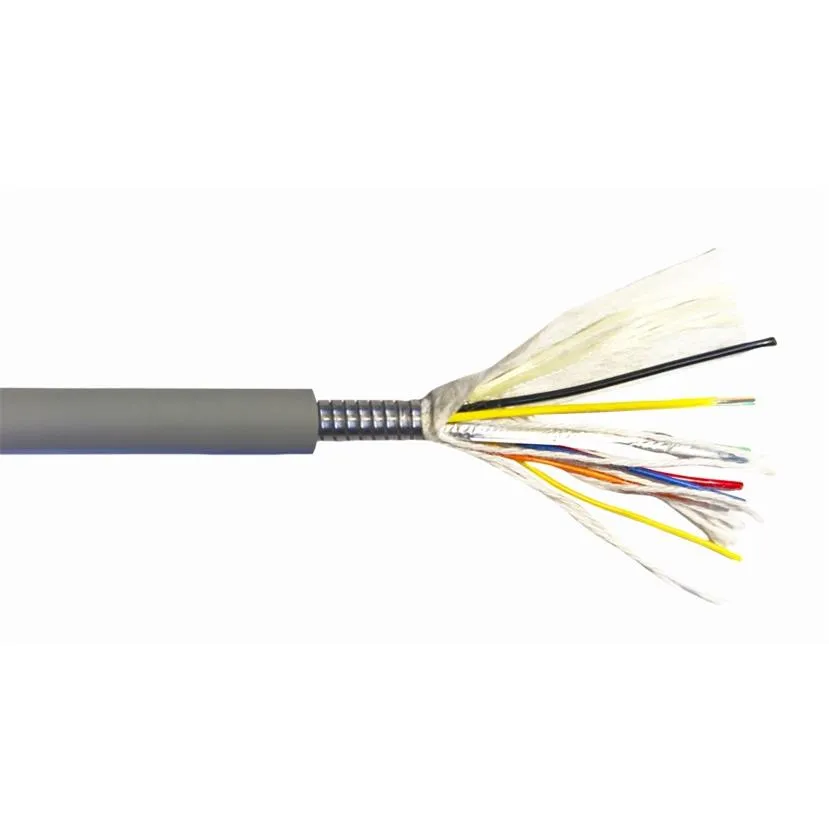

Cable Specs	Armored Hybrid type with OM3 fiber and copper wire
Cable Diameter	6.2mm±0.2
Metal Tube Material	200CU Stainless Steel Diameter: 4.4±0.1
Strengthening Unit	Dupont Kevlar (1670D*4)
Differential Input	100 ohm
Power Consumption	250mW (Max)
Tensile	Long Term: 400N Short Term: 800N
Crush Resistance	Long Term: 3000 N/100mm Short Term: 5000 N/100mm
Bending Radius	Dynamic: 20mm Static: 56mm
Temperature	-40°C ~ 80°C
Bending Test	10000 cycle
Connectors
Connector A	HDMI A (19 pin) Male
Connector B	HDMI A (19 pin) Male
Performance
Maximum Resolution	Ultra HD 8K (50/60Hz) up to 100m, 4K (50/60/100/120Hz), 1080p Deep Color, 1080i, 720p, 480p
Maximum Bandwidth	12 Gbps x 4 Channel (max.) Clock
HDCP & DDC	HDCP 2.2/2.3 Fully Support bi-directional EDID and HDCP communication
O/E Converter	4 channel 850 nm VCSEL array (Transmitter) 4 channel GaAs PD array (Receiver)
HDMI Version	HDMI 2.1b, Backward Compatible with HDMI 2.0/1.4
Supports	HDCP1.4/2.2 eARC Dynamic HDR EDID
Approvals
CE	Yes
FCC	Yes
Environmental
RoHS	Yes
Reach	Yes
Conflict Minerals	Yes
Packaging Information
Package Quantity	1
Warranty Information
Warranty	3 Year Warranty
